高速遠心ブロワー

Hebei Ketong の耐久性のある高速遠心送風機は、従来のブレードまたは多段送風機に比べて大きな進歩を示しています。非常に高い回転速度で動作することにより、単一のインペラを使用して必要な圧力を達成することができ、その結果、高効率で洗練されたシステムが実現します。

お問い合わせを送信

製品説明

Unlike traditional multi-stage blowers or vane blowers, Hebei Ketong High Speed Centrifugal Blowers use a single precision-engineered impeller that rotates at extremely high speeds to generate the required pressure. This design greatly simplifies the overall structure and improves system reliability. The development of high-speed centrifugal blower technology represents an important milestone in the industry, delivering superior efficiency and performance through advanced engineering and contributing to improved industrial productivity.
Hebei Ketong Environmental Protection Equipment Co., Ltd. is a large-scale manufacturer and distributor of high-speed centrifugal blowers in China. Ketong blowers hold a significant share in the domestic market. Its simplified structure enhances overall machine reliability. This innovative solution marks a significant leap forward in blower technology, leveraging advanced engineering to improve energy efficiency and performance, and offering greater convenience and productivity in industrial applications.

Product Parameters

4-72C Centrifugal Fan Performance Parameters
Machinenumber	Rotating speed(RPM)	Equipped motor (KW-P)	Flow (m²/h)	Total pressure (Pa)
2.8C	2900	1.5-2	1131-2356	994-606
3.2C	2900	2.2-2	1688-3517	1300-792
3.2C	2200	0.75-2	1483-2273	726-579
3.6C	2900	3-2	2664-5268	1578-989
	2200	1.5-2	2310-3434	881-723
	1800	0.75-2	1890-2810	590-483
4C	2900	5.5-2	4012-7419	2014-1320
	2300	2.2-2	3573-5491	1238-917
	2000	1.5-2	3107-4775	936-694
	1700	1.1-2	2641-4058	675-501
4.5C	2900	7.5-2	5712-10562	2554-1673
	2300	4-2	5088-7819	1570-1163
	2000	3.0-2	4428-6799	1187-879
	1700	2.2-2	3761-5779	858-635
5C	2900	15-2	7782-15455	3187-2019
	2300	7.5-2	7022-11363	1978-1468
	2000	5.5-2	6106-9881	1495-1110
	1700	3-2	5190-8399	1080-802
5.6C	2600	18.5-2	12734-17824	3209-2541
	2300	15-2	11265-15768	2511-1989
	2000	7.5-2	9795-13711	1900-1504
	1700	5.5-2	8326-11654	1372-1086
	1400	3.0-4	6857-9598	930-737
6C	2240	15-2	10314-20628	2734-1733
	2000	11-2	9209-18418	2176-1380
	1800	7.5-4	8288-16576	1760-1116
	1600	5.5-4	7367-14734	1389-881

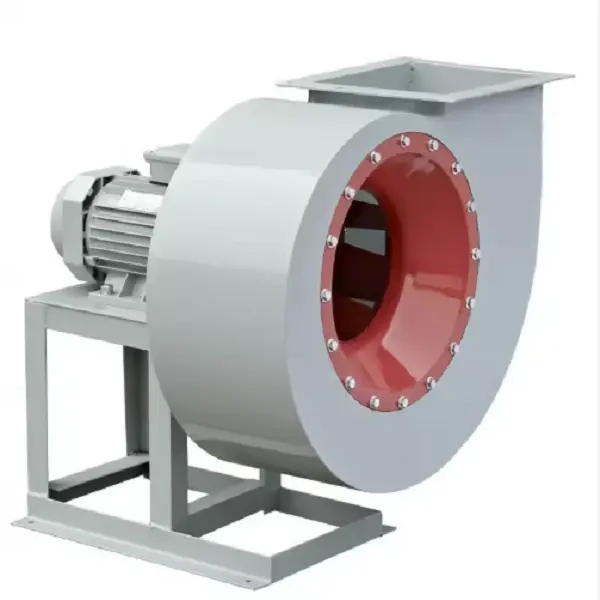

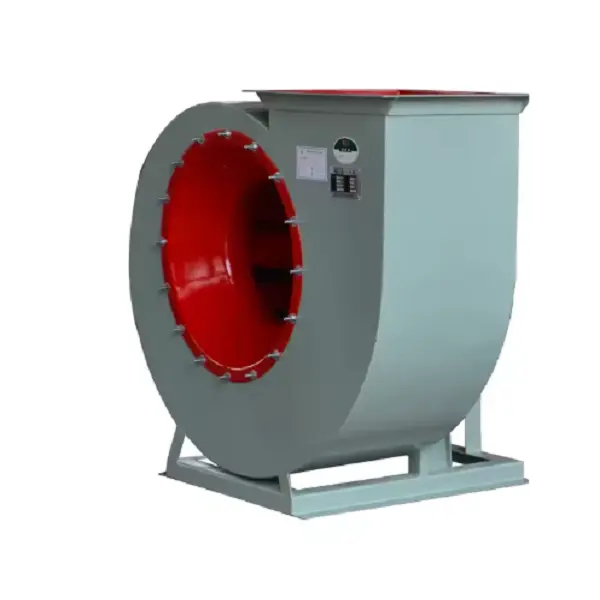

High Speed Centrifugal Blower

Product Features

The High Speed Centrifugal Blower is made of robust, corrosion-resistant fiberglass, allowing it to handle corrosive gases such as acids and alkalis. It offers high efficiency, strong air pressure, low noise, and the ability to transport gases over long pipeline distances. Stainless steel and other customized materials are also available upon request.
With advanced technology, automated production equipment, and more than 10 years of continuous development, Ketong has grown into a highly capable manufacturer with mature technical expertise, advanced processing facilities, extensive industry experience, a broad sales network, and a comprehensive service system. With its large-scale factory and diverse product portfolio, Ketong centrifugal blowers are widely sold across China and exported to global markets. We remain committed to providing superior products, reliable service, and competitive pricing.

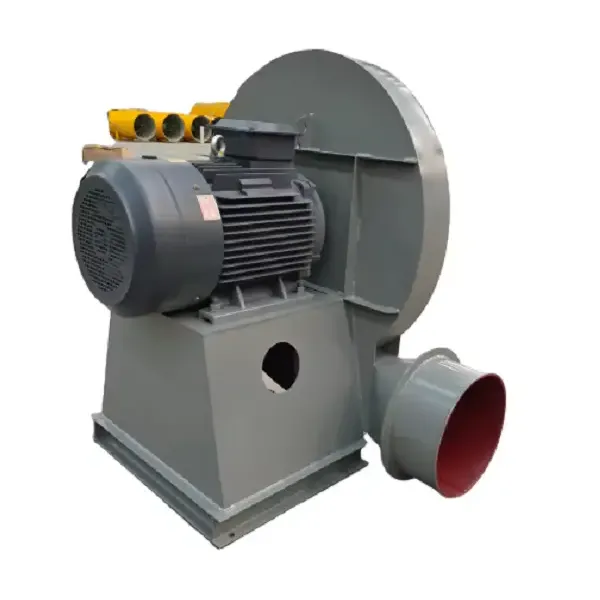

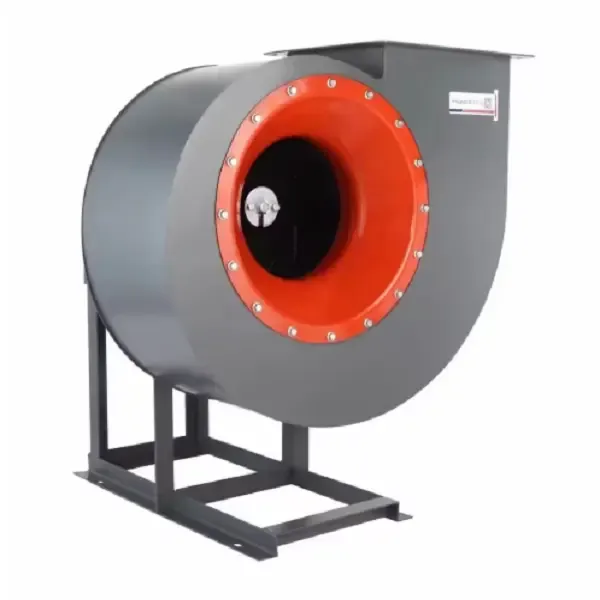

High Speed Centrifugal Blower
